HELLA

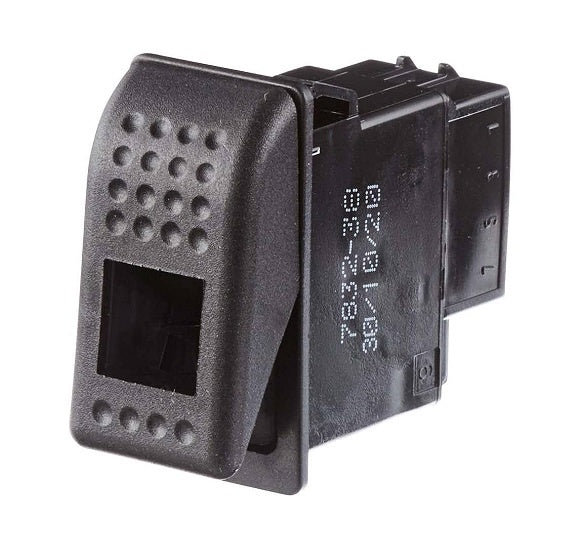

6RH 007.832-351 Rocker Switch Off-On-On (with location light and pilot light options)
6RH 007.832-351 Rocker Switch Off-On-On (with location light and pilot light options)
Regular price
$33.83 NZD
Regular price
Sale price
$33.83 NZD
Unit price
/
per
Couldn't load pickup availability
HELLA universal flush-fit rocker switches are readily adaptable to 12 and 24V applications. This large and varied range covers nearly all switching types and connections.
A wide selection of symbols ensures proper labelling of all main switching and monitoring functions. The switching and control displays can be illuminated on selected switches.
Mounting
Mounted directly to properly dimensioned opening (1 - 2.5mm thick) or by mounting panels
Terminals
| HELLA P/N | Terminals |
| 6RH 007 832-351 | 5 (Including lamp) |
| 6RH 007 832-377 | 8 (Including lamp) |
| 6RH 007 832-381 | 8 |
| 6RH 007 832-391 | 6 (Including lamp) |
| 6RH 007 832-441 | 5 (Including lamp) |
| 6RH 007 832-461 | 7 (Including lamp) |
Maximum Load
| 12V | 16A |
| 24V | 8A |
Note
Connectors, symbols, mounts and bulb holders are to be purchased separately.
Location lamp illuminates with park lights. Pilot lamp illuminates when switch is in the ‘on’ position.
