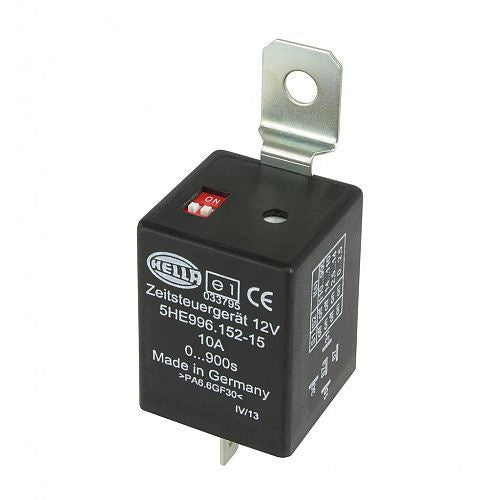

Relay Time Control 12V Pick Up Relay Trigger Terminal 15 3087/5HE 996.152-152

Voltage

12V

Function

Change-over

Bracket

Yes

Note

Relay with manually adjustable pick-up delay function, 0 – 900 seconds.
Applying +ve power to terminal 15 will activate the timer feature, n/o relay contacts close after the pre-adjusted time 0 – 900 seconds.
Disconnecting +ve power from terminal 15 will open the relay contacts 30 & 87
