Micro Relay 12V 5 Pin Change-over - 20/10A - Resistor 3065/4RD 007.814-071

Name: Micro Relay 12V 5 Pin Change-over - 20/10A - Resistor 3065/4RD 007.814-071
Brand: HELLA
SKU: 9416325158707
Price: 10.35 NZD
Availability: OutOfStock

$10.35 NZD

Sale Sold out

Quantity

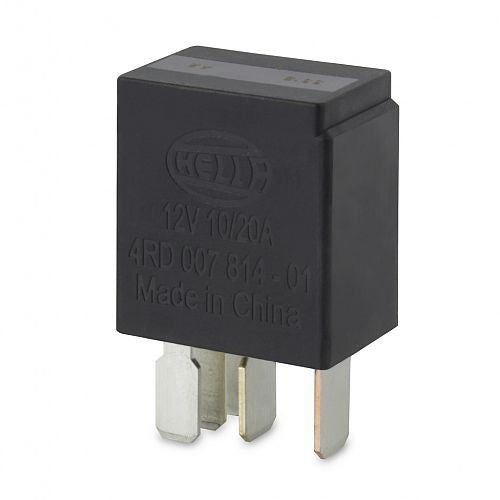

Micro relay with parallel resistor. Features three 4.8mm and two 6.3mm blade terminal contacts.

Voltage

12V

Pins

5 Pin

Function

Change-over

Protection

Resistor

Pin Designations

Terminal Number	Connect to
85/2	Earth (end of winding to ground or negative).
86/1	Positive.
87/5	Output (to consumer e.g. driving lamp).
87a/4	Alternative output (1st output, break side).
30/3	Positive supply (Input from + battery terminal, direct).

Maximum Load

Terminals	Amperage
3-5	20A
3-4	10A

Current Draw

140mA

Bracket

Note

Features three 4.8mm blade terminals (85 86 and 87a) and two 6.3mm blade terminals
