HELLA

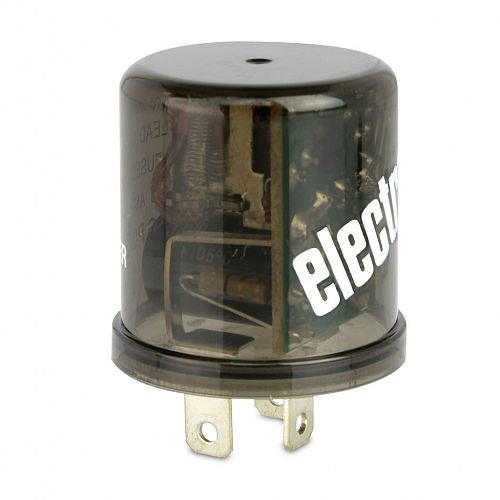

3027/4LZ 961.553-134 Electronic Flasher Unit - 12V - 3 Pin - High Capacity

Name: 3027/4LZ 961.553-134 Electronic Flasher Unit - 12V - 3 Pin - High Capacity
Brand: HELLA
SKU: 9416325126102
Price: 21.23 NZD
Availability: InStock

$21.23 NZD

Sale Sold out

Quantity

High capacity electronic flasher unit. Complete with bracket. Designed to take up to 210W loads. Reverse polarity protection, polycarbonate cover and silver contacts. Clear audible signal.

Maximum Load

1-10 x 21W

Diameter

37mm

Pin Designations

Terminal Number	Description
49/X	Flasher input (+)
49a/L	Flasher output (+) to lamps or indicator switch
C/C1/CP/P	Vehicle pilot lamp output (+)
