HELLA

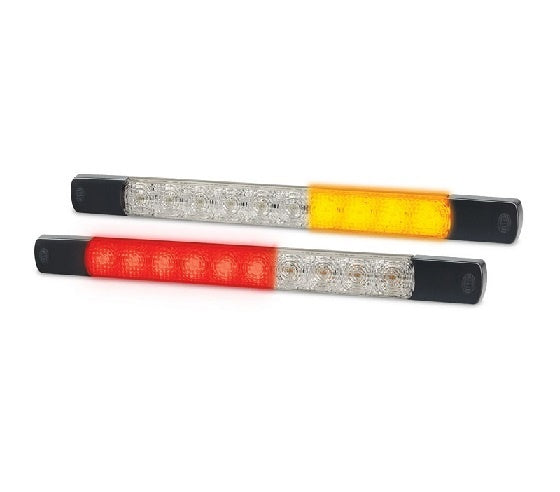

2375-24V/ 2SD 980.819-221 LED Stop/Tail/Indicator Lamp - Surface Mount 24V

2375-24V/ 2SD 980.819-221 LED Stop/Tail/Indicator Lamp - Surface Mount 24V

Regular price $102.78 NZD
Regular price Sale price $102.78 NZD
Sale Sold out

With an easy to install surface mount design, an ultra low profile of 11mm and narrow width of only 25mm the strip lamp is ideal for installation in space restricted applications. These lamps can also be mounted vertically or horizontally.

Featuring an ultra durable Grilamid® nylon lens for extreme impact, UV, chemical and stress resistance. The optic appears clear until illuminated.

Ultra-efficient LEDs offer increased reliability while reducing power consumption, maintenance and operational costs. Each lamp is also completely sealed for protection against dust, temporary water immersion and high-pressure/steam jet cleaning for long term reliability. Proudly designed and manufactured in New Zealand and supported with a 5 year warranty for complete peace of mind.

• Ultra slim with a profile height of only 11mm
• Low power consumption (2W)
• Grilamid® lens for increased durability
• Ultra long service life
• Surface mount

Optics

Optic appears clear until illuminated

Mounting

Suitable for horizontal and vertical mounting.

Voltage

12V DC or 24V DC

Power Consumption

Stop 2W
Rear Position <0.5W
Rear Direction Indicator 2W

Protection

Reverse polarity protection.
IP 6K7 (Protection against dust and temporary water immersion)
IP 6K9K (Protection against dust and high-pressure/steam jet cleaning)

Cable Length

Pre-wired with 2.5m of sheathed multi-core cable.

Lens Material

Grilamid®

Spare Parts

9.2652.09 White screw caps (Pack of 4)
9.1009.09 Charcoal screw caps (Pack of 4)
9.1009.10 Chrome plated screw caps (Pack of 4)

Compliance

ADR 49/00 ADR 6/00: Cat 2a E24 5902 ECE 6/01 ECE 7/02

Note

Includes mounting screws and charcoal screw caps.
