HELLA

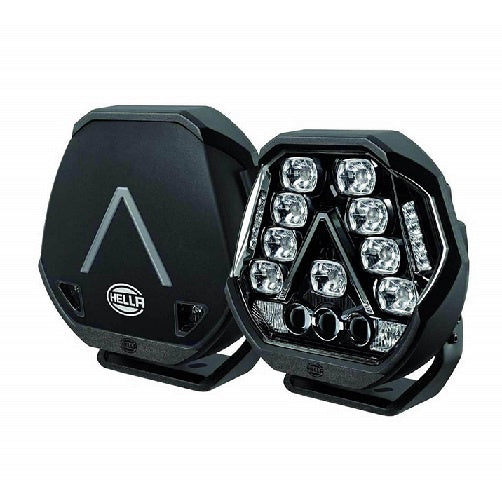

Antares 7" LED Driving Light Kit 10-30V 1F7 358.228-861

Antares 7" LED Driving Light Kit 10-30V 1F7 358.228-861

Regular price $1,122.50 NZD
Regular price Sale price $1,122.50 NZD
Sale Sold out

For powerful performance without compromise in a compact size, the 7” Antares light kit is ideal for smaller vehicles or tighter mounting locations.

HELLA Antares were created in collaboration with the largest automotive brands, and incorporate decades of experience in Australia and New Zealand’s harshest driving conditions, creating a composite beam that delivers incredibly constant and impressive output.

These driving lights are engineered to illuminate the darkest roads, ensuring your journey is safe and spectacular. The Main beam is disabled when the Driving Light cover is fitted, while still allowing Daytime Running Light to show through.

• Rugged Diecast Aluminium Housing & Bracket
• Selectable Modes: High Output / Daytime Running Light (DRL) /
   Position Light
• High Output Beam exceeds 570m
• Plug & Play Wiring Harness

Kit Includes:
(2x) Antares 7” Driving Lights with mounting hardware
(2x) Antares 7" Driving Light Covers
(2x) Adaptor (H4 & HB3)
(1x) mounting instructions
(1x) wiring harness

Mounting

Upright

Voltage

10-30V DC (suitable for 12 or 24 volt DC applications)*
*Relay & switch for 24V operation to be supplied seperately

Max Power Consumption

High Output Mode: 160W per lamp

Max Light Output

High Output Mode: 7400 lumen per lamp

Beam Distance (Metres)

570m+ @ 1 Lux (pair)

Beam Width (Metres)

70m @ 1 Lux (pair)

Colour Temperature

5700K

Cable Length

Supplied with 500mm wiring harness

Protection

Reverse polarity protection.
IP67 (Protection against dust and temporary water immersion)
IP69K (Protection against dust and high-pressure/steam jet cleaning)

Weight

Per Lamp: 1570g

Housing

Diecast Aluminium housing and bracket

Compliance

CE, ECE R10 (CISPR25 CLASS 3) R148 (R7), R87. REF. 30.
ADR 49/00, 76/00

CE
