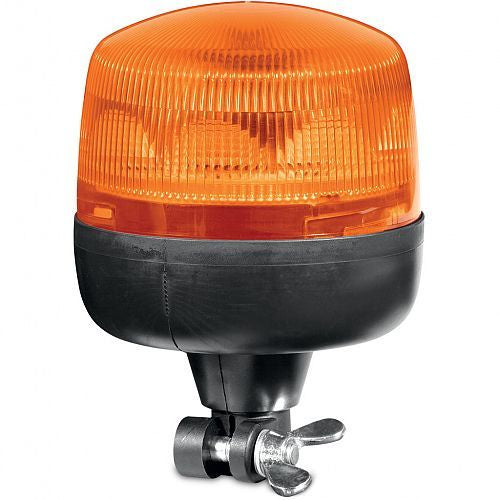

1612/2RL 010.979-011 RotaLED Beacon Amber - Pipe Mount

RotaLED Beacon, with the latest LED technology provides an optimum signal image with low power consumption. The combination of thermal management and optics in one module makes a remarkably compact design possible. Impact and dirt resistant Polycarbonate lens.

• Rotating LED light function.
• Long service life.
• Maintenance free.
• Low current consumption, high efficiency.
• Impact-resistant smooth polycarbonate dome.
• ECE R65 compliant.

Mounting	Pipe Mounting. Tubular base incorporates connection plug. Must be used in conjunction with connecting piece Part No. 8007, or other HELLA 2-pole beacon mounts.
Voltage	Multivolt™ for optimum brightness at input voltages from 10 to 32 volts.
Power Consumption	10W.
Protection	IP5KX (Protection against dust) IPX4K (Protection against splashing water from all directions. With higher pressure) IPX9K (Protection against high-pressure cleaner, specific for road vehicles)
Flash Rate	120-133 rpm simulated (2.0-2.2Hz)
Compliance	ECE R10 ECE R65 TA1 CISPR25 Power Controlled Class 5
Accessories	8007  Connecting piece 8007RA Connecting piece - right angle mount 8007FM Connecting piece - flat mount 8008 Connecting piece - threaded
