HELLA

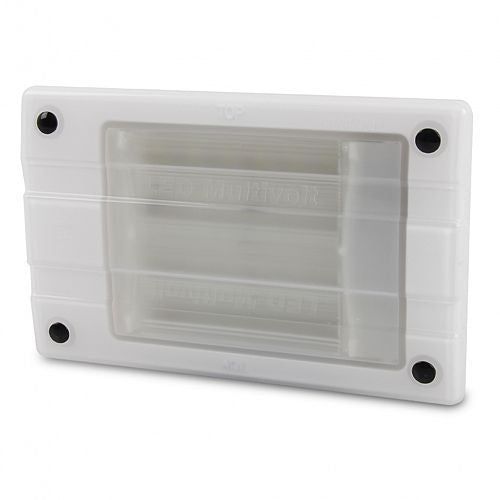

1446-H/2ZR 959.041-321 LED Reverse Designline Horizontal Recess Mount 9-33V

1446-H/2ZR 959.041-321 LED Reverse Designline Horizontal Recess Mount 9-33V

$217.23 NZD
$217.23 NZD
Sale Sold out
 More payment options

Designline LED Multivolt™ module designed to update existing Designline lamps.

The high performance module features 36 High Efficacy LEDs that more than triples the raw lumen output over the standard module. High precision optics ensure ADR compliance by focusing the majority of light down ensuring wide illumination and improved safety when reversing.

Mounting

Four point recess mount.

Voltage

Multivolt™ for optimum brightness at input voltages from 9 to 33 volts.

Power Consumption
P/Ns 1446-H/1446-V: 4W
P/Ns 1447L/1447R: 7W

Protection

Reverse polarity and 5000 watt Transient Voltage Suppressor (TVS).

Cable Length

Pre-wired with 200mm of cable.

Compliance

ADR 1/00

Note

Reversing lamps are not designed for continuous operation.
Product is compliant to all relevant Australian Design Rules to allow use on Australian and New Zealand roads.
Multivolt™ for optimum performance in 12 and 24 volt systems.
HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.
This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.
Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.
