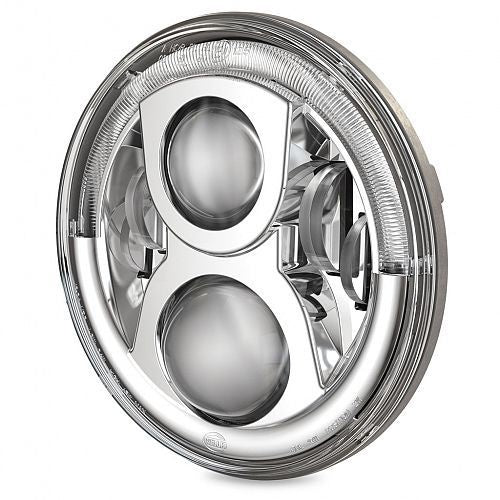

1058LED/1L6 958.307-011 Headlamp LED 178mm/7" High/Low/Position/DRL 12/24V

The HELLA 7" round LED Headlamp range are a direct replacement for 7” round halogen light inserts. Offering all the advantages of advanced LED technology including superior light output, a wider peripheral vision for increased safety on the road, and no bulb replacements or maintenance meaning less down time for fleets. Three options are available – High Beam or High/Low Beam and High/Low Beam with Daytime Running Light and Front Position.

The high/low beam function of the 7” LED headlamp range offers high lumen light output and a wide spread creating a superior light distribution increasing peripheral vision. With the added feature of Daytime Running Lamps and Front Position Lamps the 1L6 958 307-011 is a one-stop-shop for all headlight needs, increasing visibility and therefore safety on the road.

Combining the latest state of the art LED technology, multivoltage 12/24V DC circuit design and precision optics, the retrofit lamps provide outstanding visibility, safety, and durability – making them one of the most advanced 7” LED headlamps available. The tough die-cast aluminium housing is IP67 sealed against water and dust ingress with a UV resistant, hard coated polycarbonate lens making the HELLA’s 7" Round LED Headlamp range perfect for use on and off-road.

Approved for use in New Zealand and Australia, the retrofit headlamps are ECE and RCM compliant, easy to install, don't require any bulb replacements and covered by HELLA’s extensive five year warranty and nationwide support for complete peace of mind.

Mounting	Retrofit 178mm Ø (7") headlamps
Voltage	Multivolt™ for optimum brightness in 12 and 24 volt systems.
Power Consumption	Low Beam: 24W High Beam: 45W Daytime Running Lamp: 19W Front Position: 2W
Light Output	Low Beam: 694 lumen High Beam: 1340 lumen
Protection	Reverse polarity protection. IP 67  (Protection against dust and temporary water immersion)
Connection	3 PIN "H4" type male plug (100mm cable)
Cable Length	2 additional 100mm pre-wired cables with male blade terminals for front position and daytime running lamp functions.
Housing Material	Die-cast Aluminium
Lens Material	Coated Polycarbonate
Compliance	ECE R112/01 Ref. 20 E11 50146 ECE R87/00 ECE R7/02 ECE R10/05
